Perkins Diesel Generator 250KVA 1500RPM Brushless Sychronous Alternator

Brand Name : SHX

Model Number : SPE250

Certification : ISO9001:2015, CE, TUV, BV

Place of Origin : Foshan, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 Sets per month

Delivery Time : 20 working days

Packaging Details : Standard export packing

Product Name : 250KVA Perkins Genset

Color : Blue

Starting Method : Electrical

Cooling Type : Water Cooled

Power Factor : 0.8

Engine brand : Perkins

Alternator brand : Engga

Control Mode : Auto/man

Contact Now

Perkins Power Generator Set 250KVA 1500RPM Brushless Sychronous Alternator

General Information:

1. Prime Power 200KW / 250KVA, standby power 220KW / 275KVA.

2. 50Hz, 1500RPM, 400/230V, 3 Phase 4 Pole, 0.8 power factor.

3. Perkins engine with Engga alternator.

4. Smartgen or Deepsea control panel.

5. ATS and base fuel tank are for options.

Genset Specifications:

Genset model	SPE250
Genset rated power	200KW / 250KVA
Rated voltage	400/230V (adjustable)
Rated current	360 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	3000 × 1000 × 1500
Gross weight (kg)	1750

Engine Specifications:

Diesel Engine
Brand	PERKINS
Model	1506A-E88TAG3
Engine type	6 cylinders in line, 4 stroke, direct injection
Aspiration	Turbocharged and intercooled
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Fuel injection system	Electronic
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	8.8
Bore×Stroke(mm)	112×149
Compression ratio	16.1:1
100% Load fuel consumption (l/h)	≤46.8
Lube capacity(L)	41

Alternator Specifications:

Alternator
Brand	ENGGA
Model	EG280-200N
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP21

Control System

Control, monitor and protect the Generator Set
High water temperature
Low oil pressure
Over and under speed
Over current
Under/Over generator voltage
Start and stop failure
Low and high battery voltage
Charge fail
Emergency stop

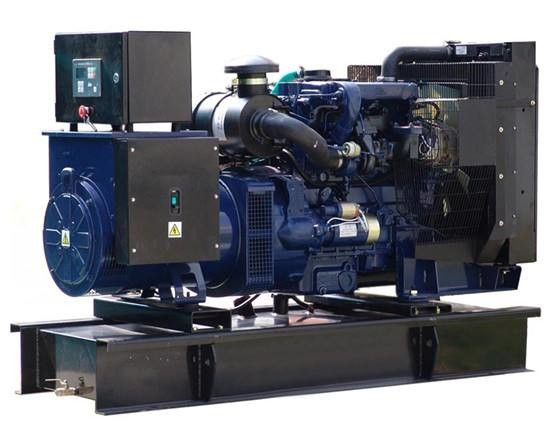

Picture Show:

Perkins Diesel Generator 250KVA 1500RPM Brushless Sychronous Alternator
